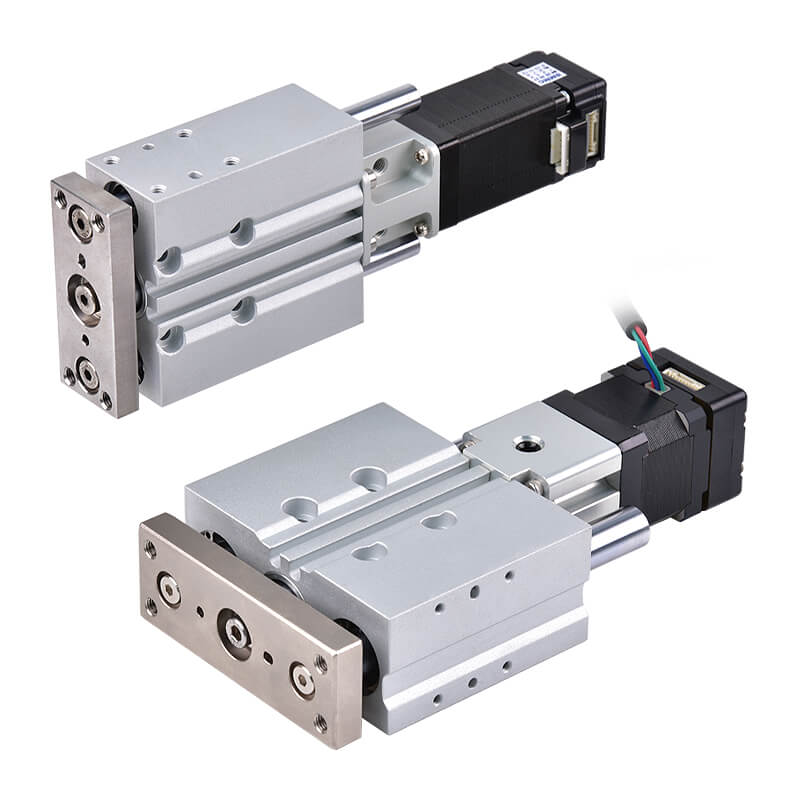

Twin-Guided Electric Actuator (Without Motor) MEGS｜High rigidity, torsion-resistant
Specifications : 16, 20, High anti-rotation accuracy, Anti-rotation tolerance ±0.06°. Three installation directions. Compact and lightweight. Excellent repeatability. Capable of withstanding torque and lateral force. Magnetic as standard.
- High anti-rotation accuracy.
- Three installation directions.
- Compact and lightweight.
- Excellent repeatability.
- Capable of withstanding torque and lateral force.
- Magnetic as standard.
| Size | 16, 20 |
|---|---|
| Positioning repeatability | ±0.02 mm |
| Lead | 1, 2 mm |
| Ball screw | ø4, ø6 |
| Stroke | 30 / 50 / 75 mm |
| Anti-rotation tolerance | ±0.06° |
| Sensor switch | RDC(V), RQC(V) |
| With step motor | □25, □28, □35 |
| Max. speed | SM : ≤ 50, ≤ 100 mm/s BM : ≤ 50, ≤ 100 mm/s OBM : ≤ 50 mm/s |
| Rated | Moment load : 0.7, 2 N.m Axial load : 0.7, 0.95 kg |
| Max. thrust(*) | 270, 160 N |
| Remark | * Thrust and moving speed may vary depending on cable length, load, stroke and mounting conditions. Thrust tolerance: ±20%.。 |
RDC/RQC Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MGT*-32~63, MCSF-5, MCRPM-20~40, MCRPMD-10, MCRPMS, MSBE, MCRJ-S, MCRC, MCHC-6/32/40, MCHCJ, MCHD, MCHH, MCHG2, MCHY2, METI, MEQI, MEGT, MEJQ, MESF2, MESBE.
CK10 Electric Actuator Controller
Support RS-485 communication (Modbus RTU), Support single / double pulse control, Support Position Table motion control function.

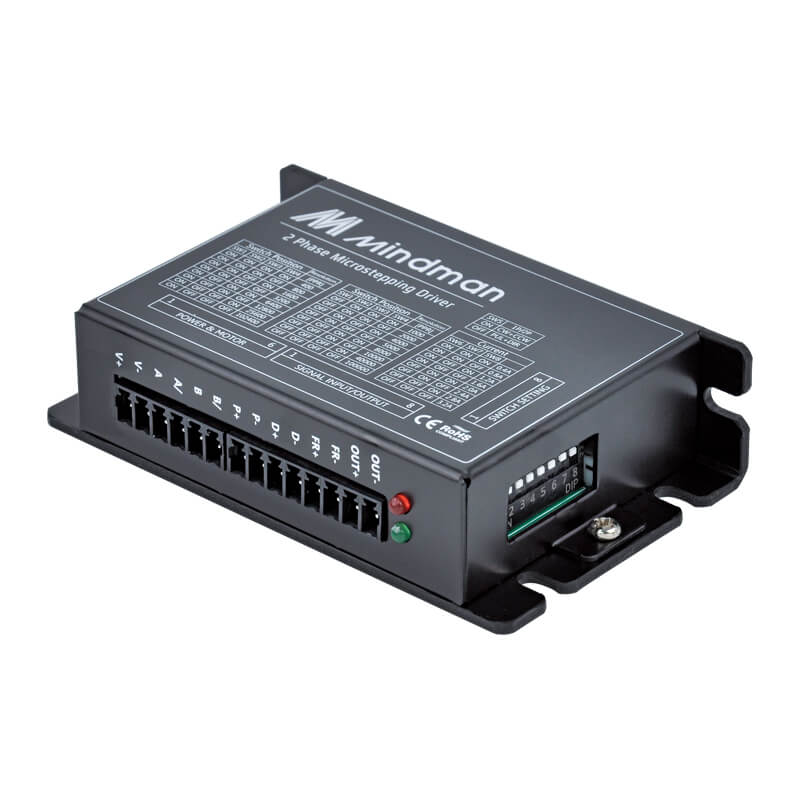

CM10 Electric Actuator Controller
Support single / double pulse control, Open loop, Sensors would be needed for origin return.
